DIY Arduino PH Controller Tutorial

Controlling the ph of a solution by hand is hard and tedious. It is a prime candidate for automation.

Lets go over the materials you will need to gather:

1. First you will need to buy a peristaltic pump. I bought mine off of ebay for 85$(You are saving money on anything that you get under $175 vs retail). To find them search "peristaltic pump" on ebay. Here are some pics of the one I bought. Make sure you buy a manual one, not one with it's own computer, because the pump will be controlled by an arduino.

Normally, in a ph solution, the ph if left alone will rise out of the desired range. To knock the ph back down we add an acid, which lowers the ph. Acids cause corrosion. For this reason a peristaltic pump is the correct answer for dosing acid because a peristaltic pump does not come in contact with the solution that it is pumping and less likely be corroded.

2. The second item you will need is peristaltic pump tubing. The peristaltic pump works by squeezing liquid through tubing. Here is some info about tubing. For my setup I used 1/16" ID x 1/8" OD 0.30" wall silicone tubing. You can search "1/16 id  1/8 od silicone tubing" on google and it will show up, but make sure you buy the correct tubing for your pump.

Here are some pics of the tubing installed in the pump. As you can see, when the pump is on, the head turns and squeezes liquid through the tube. The knob on the left controls the rate that the head spins at, and the switch controls the direction that the head rotates in.

3. The third item you need is a container that will hold the solution. I am using some glassware that I had Allen Scientific Glass in Boulder, Colorado make for me.

Remember that I said that the acids that are mixed into a solution to lower its ph are corrosive. Glass is a good pick for a container because it has a very good 'chemical resistance'. To see how it compares to other materials see this. For most chemicals, it shows no damage after 30 days, and for others only surface etching.

The acid I am using is labeled 'ph down'. I know from working with ph down that it is usually diluted phosphoric acid.

Looking at the sheet, Glass shows no damage after 30 days of exposure to Phosphoric Acid 5% and 85%. But if you pay attention the HDPE material also shows no damage after 30 days of exposure to Phosphoric acid 5% and 85%.

So if glass is too expensive, use HDPE.

HDPE buckets are readily available online. I might switch to using them if I need a larger container. I would recommend an HDPE bucket from an online diy home brewing store because they usually have a spigot, from which you can easily drain the bucket, or extract a portion of the solution. You can find these by searching google for 'fermenting bucket.' This is what searching "fermenting bucket with spigot" came up with:

4. The fourth item you will need is a ph probe. Aside from minor differences, all of them are the same. I am using this one, and I am using it specifically because it is threaded.

The reason I am using a threaded ph probe is because I can screw it into the glassware I had made. Im not going to take off the ph probe boot yet, but this is the part where it screws in.

5. You will need some 7.0 and 4.0 ph probe calibration fluid. You should buy some from the same place that you get your probe. But if you need a online source you can use omega.

6. This is the ph down that I am using. Use whatever is appropriate for your application.

7. A relay that can be controlled by a micro controller. I will be using this with an arduino to turn the peristaltic pump on and off.

8. An arduino, I am using a arduino uno.

9. A arduino ph shield. I make these and sell them here.

10. A arduino screw terminal shield. This will hold the wires in without soldering.

11. The last item you need is an lcd shield. I bought this on ebay, from seller emartee2009. The listing you should look for will be something like 'Nokia 5110 LCD Shield With SD -Arduino Compatible'.

I will be using the arduino and ph shield+probe to monitor the ph, display it on the lcd screen shield, and then control the ph by turning on the peristaltic pump that administers ph down into the container.

The next steps cover assembly and programming of the controller.

1. Insert the screw shield into the arduino uno.

2. Insert the ph shield on top of it.

3. Insert the lcd shield next.

4. Connect the ph probe.

5. Now connect the arduino to your computer via usb and start the arduino IDE. If you do not have the arduino IDE installed, go to the download page.

The first thing we need to do is install the library for the lcd shield to work.

Now we need to copy the library to the arduino library folder. It is in different locations on the windows version, osx version, and linux version.

On OSX, you need to show package contents on the file.
Then the libraries folder is located in
Contents > Resources > Java > Libraries

Alternatively, you can also create a library folder in the Home > Documents > Arduino folder.

Copy the extracted LCD5110 folder to the arduino libraries folder.

On windows and linux you will have to find out where the arduino libraries folder is. I know that when you download the windows version the arduino ide is in a folder, so it should be somewhere under that folder.

6. Now we make sure the LCD works by itself first. Open the Arduino IDE if you do not have it running and select the LCD example:

Make sure your arduino is connected to your computer by usb then hit upload.

You should see the result on the LCD.

Once you have verified the LCD works, then you can proceed.

7. Now it is time to load the full program and set it up. Create a new sketch and paste the following code in to it:

#include <EEPROM.h>
#include <LCD5110.h>

//My scratch notes
//measuredPH-6.8580 roomTempMeasuredPH-6.8965
//tempC-28.0195 phVolts-2.3535 7CalVolts-2.3047 4CalVolts-3.3594 4CalTempAdjusted-3.9640

//float volt4 = 3.359;
//float volt7 = 2.304;
//float calibrationTempC = 21;

float volt4 = 3.341;
float volt7 = 2.304;
float calibrationTempC = 31.1;

//A3 = temp
//A2 = PH
int phPin = A2;
int tempPin = A3;
int calPin = 8;
int relayPin =13;

void setup()

float measurePHVolts()
    float phADC = analogRead(phPin);
    float phVolts = (phADC/1024.0)*5.0;
    return phVolts;

float getTempAdjusted4()
    float adjustTemp = calibrationTempC;
    float difference = adjustTemp-25;
    float phAdjust = (0.009 * difference);
    float tempAdjusted4 = 4 + phAdjust;
    return tempAdjusted4;

float measurePH()
    float phVolt = measurePHVolts();
    float tempAdjusted4 = getTempAdjusted4();
    float voltsPerPH = (abs(volt7-volt4)) / (7-tempAdjusted4);
    //acid ph's produce positive voltages, basic ph's produce negative voltages
    //that one site was wrong
    float realPHVolt = (volt7 - phVolt);
    float phUnits = realPHVolt / voltsPerPH;
    float measuredPH = 7 + phUnits;
    return measuredPH;

float doPHTempCompensation(float PH, float temp)
    float difference = temp-25;
    float phAdjust = (0.009 * difference);
    float tempAdjustedPH = PH + phAdjust;
    return tempAdjustedPH;

float measureTempC()
    float tempADC = analogRead(tempPin);
    float tempVolts = (tempADC/1024)*5.0;
    float tempC = (tempVolts/0.010);
    return tempC;

// floatToString.h
// Tim Hirzel
// March 2008
// float to string
// If you don't save this as a .h, you will want to remove the default arguments
//     uncomment this first line, and swap it for the next.  I don't think keyword arguments compile in .pde files

//char * floatToString(char * outstr, float value, int places, int minwidth=, bool rightjustify) {
char * floatToString(char * outstr, float value, int places, int minwidth=0, bool rightjustify=false) {
    // this is used to write a float value to string, outstr.  oustr is also the return value.
    int digit;
    float tens = 0.1;
    int tenscount = 0;
    int i;
    float tempfloat = value;
    int c = 0;
    int charcount = 1;
    int extra = 0;
    // make sure we round properly. this could use pow from <math.h>, but doesn't seem worth the import
    // if this rounding step isn't here, the value  54.321 prints as 54.3209

    // calculate rounding term d:   0.5/pow(10,places)
    float d = 0.5;
    if (value < 0)
        d *= -1.0;
    // divide by ten for each decimal place
    for (i = 0; i < places; i++)
        d/= 10.0;
    // this small addition, combined with truncation will round our values properly
    tempfloat +=  d;

    // first get value tens to be the large power of ten less than value
    if (value < 0)
        tempfloat *= -1.0;
    while ((tens * 10.0) <= tempfloat) {
        tens *= 10.0;
        tenscount += 1;

    if (tenscount > 0)
        charcount += tenscount;
        charcount += 1;

    if (value < 0)
        charcount += 1;
    charcount += 1 + places;

    minwidth += 1; // both count the null final character
    if (minwidth > charcount){
        extra = minwidth - charcount;
        charcount = minwidth;

    if (extra > 0 and rightjustify) {
        for (int i = 0; i< extra; i++) {
            outstr[c++] = ' ';

    // write out the negative if needed
    if (value < 0)
        outstr[c++] = '-';

    if (tenscount == 0)
        outstr[c++] = '0';

    for (i=0; i< tenscount; i++) {
        digit = (int) (tempfloat/tens);
        itoa(digit, &outstr[c++], 10);
        tempfloat = tempfloat - ((float)digit * tens);
        tens /= 10.0;

    // if no places after decimal, stop now and return

    // otherwise, write the point and continue on
    if (places > 0)
    outstr[c++] = '.';

    // now write out each decimal place by shifting digits one by one into the ones place and writing the truncated value
    for (i = 0; i < places; i++) {
        tempfloat *= 10.0;
        digit = (int) tempfloat;
        itoa(digit, &outstr[c++], 10);
        // once written, subtract off that digit
        tempfloat = tempfloat - (float) digit;
    if (extra > 0 and not rightjustify) {
        for (int i = 0; i< extra; i++) {
            outstr[c++] = ' ';

    outstr[c++] = '\0';
    return outstr;

void loop()
    int x;
    int sampleSize = 500;

    float avgMeasuredPH= 0;
    float avgRoomTempMeasuredPH =0;
    float avgTemp = 0;
    float avgPHVolts =0;
    float avgVoltsPerPH =0;
    float phTemp = 0;
    float tempAdjusted4 = getTempAdjusted4();

    for(x=0;x< sampleSize;x++)

        float measuredPH = measurePH();
        float phTemp = measureTempC();
        float roomTempPH = doPHTempCompensation(measuredPH, phTemp);
        float phVolt = measurePHVolts();

        avgMeasuredPH += measuredPH;
        avgRoomTempMeasuredPH += roomTempPH;
        avgTemp += phTemp;
        avgPHVolts += phVolt;

    avgMeasuredPH /= sampleSize;
    avgRoomTempMeasuredPH /= sampleSize;
    avgTemp /= sampleSize;
    avgPHVolts /= sampleSize;
    Serial.print(" measuredPH-");
    Serial.print(" roomTempMeasuredPH-");
    Serial.print(" tempC-");
    Serial.print(" phVolts-");
    Serial.print(" 7CalVolts-");
    Serial.print(" 4CalVolts-");
    Serial.print(" 4CalTempAdjusted-");
    char charBuffer[25];
    LcdString("TempC: ");
    if(avgMeasuredPH > 5.9)
      LcdString("dosing on");
      LcdString("dosing off");

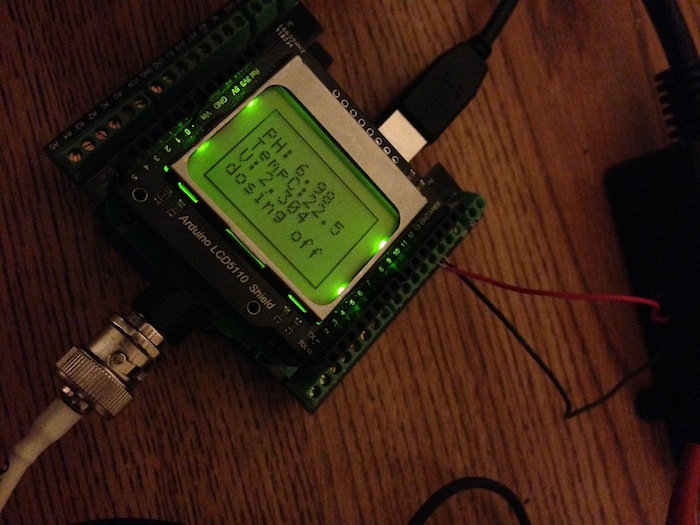

Connect your ph probe, and after clicking upload you should see a screen like this:

8. Now we calibrate the ph probe. The reason we need to calibrate is because ph probes age. Normally they output a certain +-mv per ph, but over time this drifts. Calibration overcomes this inconvenient fact of life. Here I have the ph 4.01 calibration solution on the left, tap water(If you have distilled water that is better) in the middle, and ph 7.0 calibration on the right.

First rinse your ph probe in the tap water.

Then dip your ph probe in the 7.0 solution and write down the voltage value. It is 2.304 volts.

Now re-rinse the probe.

The next step is to dip your probe in the 4.0 calibration solution. Write down the volts and temperature. So 3.341 volts and 31.1C. As you can see my thermostat kicked in.

Since temperature has no effect on ph at ph 7, we do not record it then. Temperature does affect the 4.0 ph measurement however, so we write it down.

Now we will plug the values that we wrote down into the program. Find the following variables:

We need to change them to the values that we just measured.

volt4 = 3.341;
volt7 = 2.304;
calibrationTempC = 31.1;

Then press upload. This completes the calibration.

9. Step nine is to attach the relay to the arduino. You will need a 5/64" screwdriver for this part.

Wire the terminal labeled "+in" on the relay to pin 13 on the arduino. Wire the terminal labeled "-in" on the relay to GND on the arduino.

10. Now that we have the relay connected, we alter the code for when to turn the relay on. At the bottom of the code there is this snippet:

Since I will be growing hydroponic strawberries in coco this summer(hopefully) a ph of 5.5-6.2 is the best range for me.

11. The rest of the steps are just assembly. Connect the relay to the peristaltic pump, connect the other end of the relay to power. Mount the ph probe into the solution container. Connect the peristaltic pump tubing to the ph down.

Yes of course I took a video :)

The reason the fluid in the video goes back and forth is because I tightened the peristaltic pump too tight around the tubing.

Also in the video the ph goes up at first because I just connected the probe and it still had a coating of 4.0 calibration solution on it.

I will rearrange the items a bit, and switch to using a wireless outlet to turn the peristaltic pump on and off.
